GeoSIG Solar Power Solution

Key Features

  • Field proven design
  • High reliability and flexibility
  • Solar power solutions that are suitable for harsh environmental conditions
  • Secure housing for all environments

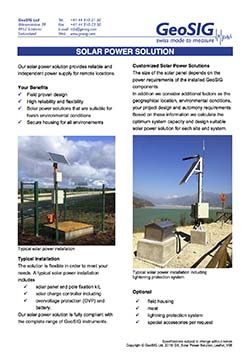

Downloads

Our solar power solution provides reliable and independent power supply for remote locations.

The system comprises solar panels, charger/regulator, batteries and a mounting kit. Please note that solar components are frequently changed/improved by the manufacturers, therefore the context of the product document is to provide an overview of typical characteristics. Depending on the particular system supplied, the components may differ from the ones shown.

The size of the solar panel depends on the power requirements of the installed GeoSIG components.

In addition we consider additional factors as the geographical location, environmental conditions, your project design and automony requirements. Based on this information we calculate the optimum system capacity and design suitable solar power solution for each site and system.
  • Solar Modules

  • Power
  • 60-130 Watt
  • Current
  • 3.5-7.0 A
  • Voltage
  • 15-22V
  • Power Warranty
  • >20 Years
  • Temperature Range
  • -40° to 85°C
  • Weight
  • 7-10KG
  • Solar Panel Mast Kist

  • Pole fixing set for Solar modules
  •
  • Pole diameter
  • 7-10 cm
  • Solar Charger

  • Rated Solar Input
  • 5-20 A
  • Rated Load
  • 5-20 A
  • Regulation Voltage
  • 12-24 V
  • Max panel voltage
  • 30 V (in 12V system)
  • Self-consumption
  • < 4 mA
  • Temperature Range
  • -40° to 50°C
  • Battery

  • Capacity
  • 12V/24-100 Ah
  • **Specifications subject to change without notice
