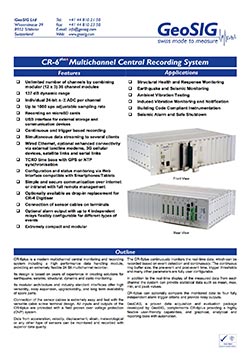

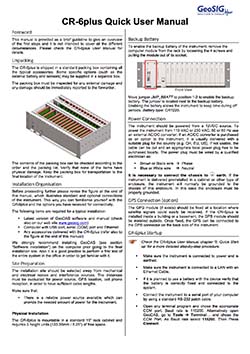

GeoSIG CR-6plus

Key Features

  • Unlimited number of channels by combining
  • modular (12 x 3) 36 channel modules
  • 137 dB dynamic range
  • Individual 24-bit D-S ADC per channel
  • Up to 1000 sps adjustable sampling rate
  • Recording on microSD cards
  • USB interface for external storage and communication devices
  • Continuous and trigger based recording
  • Simultaneous data streaming to several clients
  • Wired Ethernet, optional enhanced connectivity via external landline modems, 3G cellular
  • devices, satellite links and serial links
  • TCXO time base with GPS or NTP synchronisation
  • Configuration and status monitoring via Web Interface compatible with Smartphones/Tablets
  • Simple and secure communication over internet or intranet with full remote management
  • Optionally available as drop-in replacement for CR-4 Digitiser
  • Connection of sensor cables on terminals
  • Optional alarm output with up to 4 independent relays flexibly configurable for different types of eventsExtremely compact and modular
  • Structural Health and Response Monitoring
  • Earthquake and Seismic Monitoring
  • Ambient Vibration Testing
  • Induced Vibration Monitoring and Notification
  • Building Code Compliant Instrumentation
  • Seismic Alarm and Safe Shutdown
CR-6plus, now a legacy product, was a modern multichannel central monitoring and recording system including a high performance data handling module, providing an extremely flexible 24 Bit multichannel recorder.

Its design was based on years of experience in creating solutions for earthquake, seismic, structural, dynamic and static monitoring.

Its modular architecture and industry standard interfaces offered high versatility, easy expansion, upgradeability, and long term availability of spare parts.

Connection of the sensor cables was extremely easy and fast with the versatile cable screw terminal design. All inputs and outputs of the CR-6plus were protected with a field proven over voltage protection (OVP) system.

Data from acceleration, velocity, displacement, strain, meteorological or any other type of sensors could be monitored and recorded with superior data quality.

The CR-6plus continuously monitored the real-time data, which could be recorded based on event detection and continuously. The continuous ring buffer size, the pre-event and post-event time, trigger thresholds and many other parameters were fully user configurable.

In addition to the real-time display of the measured data from each channel the system could provide statistical data such as mean, max, min, and peak values.

CR-6plus could optionally compare the monitored data to four fully independent alarm trigger criteria and provide relay outputs.

GeoDAS, a proven data acquisition and evaluation package developed by GeoSIG, complemented CR-6plus, providing a highly flexible user-friendly capabilities, and graphical, analytical and reporting tools with automation.

  • overview

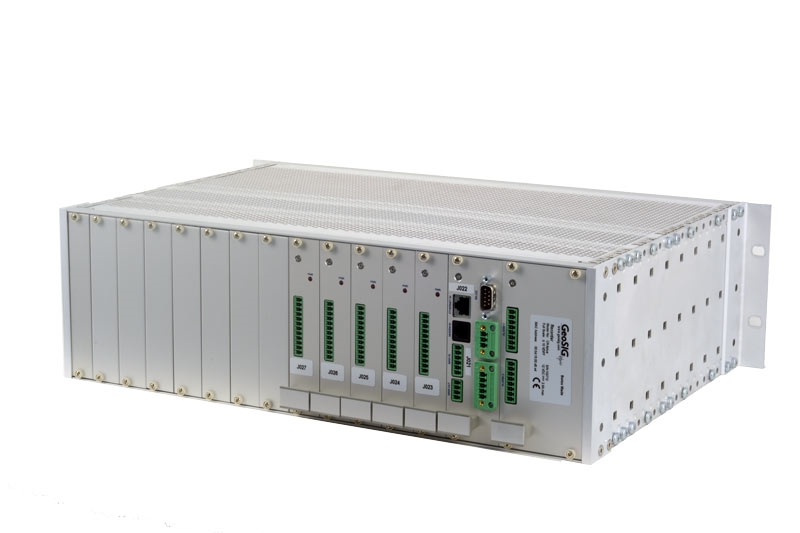

  • CR-6plus is a 19’’ rack module consisting of Slot-in Modules (SiMs) inserted into vertical slots.
    Each CR-6plus rack is expandable up to 36 channels and by combining several CR-6plus systems, hundreds of channels can be monitored.
    System parameters of the CR-6plus are stored in the non-volatile system memory to allow automatic recovery.
  • Sensors

  • The CR-6plus offers the most flexible sensor connectivity options to cater for the needs of any measuring requirement. Any type of sensor complying with the CR-6plus signal input specifications can be connected on the conveniently available screw terminals.
  • cr-6 plus rack

  • Configuration:
  • Base SiM modules:
    - CR-6-SBC data handling SiM ARM Cortex A8, 800 MHz
    128 MB Flash, 128 MB RAM
    - CR-6-OVPB over voltage protection SiM
    - CR-6-WDB system watchdog SiM
    Channel SiM modules:
    - CR-6-DS digitiser SiM
    - CR-6-OVPS sensor interface SiM
  • Channels:
  • Up to 30 channels
  • digitiser sim

  • Configuration:
  • CR-6-DS Mounted at the front of the CR-6plus Rack
    up to 12 SiMs per one Rack
  • Channels:
  • 3 channels per SIM
  • A/D Converter:
  • 24 Bit Δ−Σ per channel
    with analog and digital FIR anti-aliasing filters
  • Dynamic range:
  • 146 dB (per bin @ 1 Hz rel. full scale rms) 137 dB @ 50 sps
  • Sampling rate:
  • Up to 1000 SPS
  • Bandwidth:
  • DC to 250 Hz
  • sensor interface sim

  • Configuration:
  • CR-6-OVPS
    Mounted at the back of the CR-6plus Rack
    up to 12 SiMs per one Rack
  • Channels:
  • 3 channels per SIM
  • Input signal:
  • 10 VDC differential
    2.5 VDC ± 2.5 VDC single ended
    0 - 20 mA current loop
  • Sensor power:
  • 12, ±12 or 24 VDC
  • data recording

  • Type:
  • Continuous and/or event based
  • Triggering

  • Type:
  • Level or STA/LTA trigger
  • Pre-event-time:
  • 1 to 720 seconds, typical
  • Post-event-time:
  • 1 to 7200 seconds, typical
  • Trigger filtering:
  • User configurable lowpass, highpass or bandpass
  • Data stream

  • Protocol:
  • GSBU, SeedLink (Earthworm compatible)
  • Storage memory

  • Size and type:
  • 8 GByte removable microSD Card,
    Higher capacity available on request
    Large USB storage available on request
    FAT32 or EXT4 formatted
  • Management:
  • Intelligent management of memory card
    capacity using policies as per file type and
    ring buffer capacity specification.
  • Recording format:
  • miniSEED, optionally with extended information encapsulated into blockette 2000.
  • power

  • DC power:
  • 15 VDC (12.5-18 VDC)
  • AC power:
  • Available on request, AC/DC adaptor with 230 VAC / 50 Hz or 115 VAC / 60 Hz.
  • Consumption:
  • typically 15 W with 36 channels excluding the consumption of the connected sensors
  • Solar panels:
  • Available on request
  • External battery:
  • Available on request, 24 to 100 Ah with battery protection in case of low battery condition with automatic restart after power is restored.
  • Self-test

  • CR-6plus is a 19’’ rack module consisting of Slot-in Modules (SiMs) inserted into vertical slots. Each CR-6plus rack is expandable up to 36 channels and by combining several CR-6plus systems, hundreds of channels can be monitored. System parameters of the CR-6plus are stored in the non-volatile system memory to allow automatic recovery.
  •
  • time base

  • Internal:
  • Intelligent Adaptive Real Time Clock (IARTC)
  • External:
  • NTP or GPS
  • Std. TCXO accuracy:
  • ±0.5 ppm (15 s/year) @ +25 °C
    ±2.5 ppm (75 s/year) @ -10 to +50 °C
    Higher accuracy available on request
  • Accuracy after learn:
  • < ± 0.5 ppm (15 s/year or 2 ms/h)
  • Accuracy with NTP:
  • < ± 4 ms typical, assuming reasonable access to NTP servers
  • Communication channel

  • Standard:
  • Ethernet TCP/IP
  • Optional:
  • Internal landline modem External GSM modem External Satellite modem External GPRS modem External UMTS/3G modem
  • user interface

  • An intuitive web interface is available for easy configuration with any web browser. Alternatively the configuration file in XML format can be edited on site through the instrument console, exchanged by replacing the memory card, remotely from a server or through SSH. Even if the configuration file can be manually edited at any time, a tool is provided to edit it securely.
    Network based link allows the user optionally to interact with the unit over the Internet, from anywhere around the world.
  • alarm (optional SIM)

  • Alarms:
  • 4 independent relay contacts for trigger alarm and/or error (NO and NC contacts available)
  • Relay hold on:
  • 1 to 60 seconds (User programmable)
  • Contacts:
  • Suitable for a low voltage control. In case large loads must be switched then external relays should be implemented.
  • Max voltage:
  • 125 V / 250 mA
  • environment/housing

  • Operational temperature:
  • -20 °C to +70 °C
  • Storage temperature:
  • -40 °C to +85 °C
  • Humidity:
  • 0 % to 100 % (non condensing)
  • Rack dimentions:
  • 19’’ rack, 3 HU, 350 mm depth
  • Housing:
  • Various fixed or portable housings available on request
  • Protection:
  • Housings with variable protection available on request
  • **Specifications subject to change without notice
