GeoSIG's latest seismic recorder offering— nair slim—is the groundbreaking latest generation of the GeoSIG Measuring Systems with highest performance, excellent operational flexibility and enhanced connectivity. With its optimised installation, operation and maintenance philosophy, nair slim offers the real possibility to measure any dynamic motion with an abundance of features and options.

Highly reduced cost of ownership and user-friendly approach in the design make nair slim the perfect choice for the most advanced user.

Numerous optimisations within the architecture and the design yields unprecedented performance for seamless and fast execution of all system processes.

nair slim is fully compatible with existing GeoSIG sensors and can co-exist and co-perform in the same network as the GMS series recorders. The simple upgrade path makes nair slim "future proof."

Housing is designed for easy transport, with handles and a gasket for better grip. Also, there is easy access to the SD card slot on the back, improving the user experience.

Applications

• Seismic and Earthquake Recorder
• Structural Health Monitoring
• Real-time Seismology for Free-field and Urban Areas
• High Density Earthquake Monitoring Networks
• Shake / Hazard Mapping based on Instrumental Data
• Earthquake Early Warning and Rapid Response
• Damage Estimation, Disaster Management
• Seismic Alarm and Safe Shutdown
• Ambient Vibration Testing (optionally fully wireless)
• Induced Vibration Monitoring and Notification
• Building Code Compliant Instrumentation

• Use and Versatility

• An intuitive web interface is available for easy configuration and interaction as well as display of live data graphs and state of health information, using any web browser.
• The device configuration file in XML format can be alternatively edited on site through the instrument console, exchanged by replacing the memory card, remotely from a server or through SSH from anywhere around the world.
• Modular plug-in electronics structure provides highly increased serviceability and maintenance as well as easy hardware field upgrades or replacements.

• Data Analysis

• nair slim can perform realtime single/double integration, differentiation, HP/LP/BP filtering, decimation, peak/average calculations on the physical sensor signal and can provide these as realtime virtual signal. All recording and monitoring features can be applied on the virtual signals, simultaneous to the physical signals.

• Sensor*

• External: All GeoSIG sensors and any other third-party sensors with the following specifications can be connected to nair slim as external sensor(s):
• Sensor output:
• ±20 V, ±10 V, ±2.5 V - differential
•
• Software selectable
• Power to sensor:
• 15 or 24 VDC / 600 mA

• Digitizer

• Channels:
• 3 or 6*
• A/D conversion:
• 32 bit Δ−Σ converters individual for each channel
• DSP:
• 32 bit output word length
• Dynamic range:
•
•    Overall:
• 158 dB per bin @ 1 Hz rel. full scale RMS
  150 dB @ 40 sps peak-peak RMS to RMS shorted input noise
• Wide-band:
•
•    0 - 500 Hz
• 131 dB RMS full-scale peak to RMS shorted input noise
• ANSS:
•
•    0.002 - 50 Hz
• 141 dB RMS full-scale peak to RMS shorted input noise
•    0.01 - 15 Hz
• 146 dB RMS full-scale peak to RMS shorted input noise
•    15 - 30 Hz
• 146 dB RMS full-scale peak to RMS shorted input noise
• Sampling rate:
• configurable up to 6 channels @ 5000 sps;
  supports 2 different simultaneous sample rates;
  each channel can have different sampling rates
• Max. bandwidth*:
• 0 to 1000 Hz (other optional)
• Anti Aliasing Filter:
• Analog and digital FIR (finite impulse response)

• Indicators

• LED indicators:
• RGB LEDs for Power, System, Data, Network and Sensor

• Triggering

• Several Trigger Sets can be defined in the instrument. Each set can be flexibly configured regarding the source of trigger, main and advanced trigger parameters,
  trigger processing and selected channels for storage. A voting logic based on the monitored channels can be defined.

• Trigger Filter

• Fully independent high-, low- or bandpass trigger filters can be configured.

• Level Triggering

• Freely user configurable threshold.

• STA / LTA Triggering

• Freely user configurable STA/LTA trigger and de-trigger ratios.

• Scheduled / Manual

• After start-up, at a given date / time, after event or manual

• Early Warning (EEW)*

• JMA Earthquake Early Warning

• Event Recording

• Pre-event memory:
• 1 to 720 seconds, typical
• Post-event duration:
• 1 to 7200 seconds, typical

• Event Summary and Parameters

• Content:
• PGA, PGV, PGD, SA (at 0.3, 1, 3 Hz)
• Transmission delay:
• User defined from trigger time

• Data Stream

• Protocol / Compatibility:
• GSBU, SeedLink, Earthworm*

• Ring Buffer

• Usage:
• User can request an event from any period of the ring buffer by specifying the start time/date and the duration from the console or remotely from a server
• Method:
• Ringbuffer files with freely configurable duration which can be uploaded automatically to data server.

• Storage Memory

• Size and Type:
• 8 GByte Removable SD Card, FAT32 or EXT4 formatted
  higher capacity on request*
• Management:
• Intelligent management of memory card capacity using storage policy to define reserved space per file type.
• Recording format:
• miniSEED and extended miniSEED with information encapsulated into blockette 2000
• Estimated Capacity:
• Sampling rate [sps] x 0.4 [MB / day / 3 channel]
  (example: 40 MByte / day / 3 channel @ 100 sps)
  typical, since the data is compressed, capacity depends on the context of the data.

• Self Test

• Permanent self monitoring of hardware and software components without affecting their normal operation.


• User-configurable periodical state of health (SOH) report based on comprehensive test of instrument, which can be requested at any time.

• User-configurable periodical sensor test.

• Advanced sensor testing with sine, saw and square wave injections.

• Logging of temperature and humidity inside the unit.

• Timing

• Internal clock:
• Intelligent Adaptive Real Time Clock (IARTC)
• Sources:
• Network Time Protocol (NTP),
  GNSS (GPS, GLONASS, BeiDou and Galileo) with external antenna
  up to 5 m cable, or with external module up to 100 m cable*,
  wired interconnection (ICC)*
• Free running drift:
    Without any source

• ±0.5 ppm @ constant +25 °C
  ±2.5 ppm @ -10 to +50 °C
•
•  After learn (source disconnect):
• < ±0.2 ppm @ -20 to +50 °C
• Accuracy:
•
•   Running free:
• calculate from above drift
•   Running with NTP:
• < ±0.5 ms
•   Running with GPS or ICC:
• < ±0.001 ms
•   Common time:
• NTP grade timing accuracy among separate units over Ethernet TCP/IP networks

• Power

• Input voltage:
• 9 - 48 VDC
  90 - 260 VAC / 50 - 60 Hz to 15 VDC
  switched UL approved external power block*
• Power over Ethernet:
• Mode A and B
• Power consumption:
• 130 mA @ 12 VDC for 3 channels
  200 mA @ 12 VDC for 6 channels

• Communication and connectivity

• Configuration, Data Retrieval:
• Ethernet, Wi-Fi*, Serial line (console), removable SD card, USB storage*
• Network requirements:
• Fixed or Dynamic IP on Ethernet LAN and/or internet connection with Ethernet interface
  or OpenVPN, upload to HTTPS and SFTP servers, Wi-Fi
  (b/g/n) network with WEP, WPA, WPA2 security and Enterprise Mode*
• Security:
• GeoDAS proprietary protocol over SSL, checksum and software handshaking
• Connectors:
• Power, Ethernet, Multicom (USB and Serial RS-232), SD card×,
  Sensor(s), GPS×, Alarm×, Option×, Intercon×, Wi-Fi×, micro-USB console×

• Alarm and Notification*

•
• Alarms:
• 4 independent solid state relay contacts for trigger alarm and/or error (user selectable), with 1 "acknowledge input".
• Alarm levels:
• Freely user configurable based on event triggers
• Relay Hold-On:
• 1 to 60 seconds, typical;
  (Freely user configurable)
• Capacity:
• The contacts are suitable for a low voltage control. In case a large load must be switched then external relays should be implemented.
• Max voltage:
• 60 V / 250 mA per relay

• Modem / WAN Interfaces*

• External peripheral modules for cellular 3G/4G, SHDSL, Fiber optic, etc, are available.

• Environment / Reliability

• Operational temperature:
• -20 to +70 °C**
• Storage temperature:
• -40 to +85 °C**
• Humidity:
• 0 to 100 % RH (non-condensing)
• MTBF:
• > 500’000 hours (based on GMS series)

• Housing

• Type:
• Aluminium housing
• Connectors:
• Metallic circular screwed, or MIL-style*
• Size:
• 275 x 190 x 100 mm (W x D x H)
• Weight:
• 3 kg
• Protection:
• IP65 (NEMA 4), IP68 (NEMA 6)*
• Easy Transport*:
• Handles and gasket added for improved portability.

• GMSplus series are produced in different types to suit particular specifications or regulations. Specifications mentioned here may be different among different types.

  *   : Optional
  ** : Use of an internal battery may degrade this specification
  °   : Retrieved data can be in the following formats depending on transmission, software and storage method used: miniSEED, DAT, ASCII, SEISAN, SUDS, SAC, SEG-2, Matlab, Artemis

  ***Specifications subject to change without notice

• Modular electronics for field repair and upgrade
• 3 or 6* channels, up to 5000* sps sampling rate
• Low noise individual 32-bit Δ−Σ ADC per channel
• External sensor options
• Wired, Wi-Fi*, GSM*, satellite* links
• Power-Over-Ethernet and wide power range
• Smart satellite* or network timing
• USB for storage and communication devices*
• Continuous data recording to ringbuffers
• Flexible configuration of multiple triggers
• Simultaneous data streaming to several clients
• Virtual signals from realtime processed sensor signal
• Added handles and gasket for improved portability
• Web Interface compatible with smartphones / tablets
• Simple and secure remote access over Internet
• Alarm output with up to 4 dry-contact relays*
• Low power consumption
• Hot swappable SD card, with easy access from the back (no screwdriver required)
• Third generation of NetQuakes Recorders

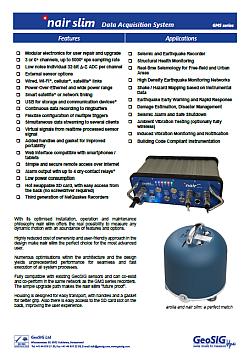

Download: Data sheet
