GeoSIG Communication - ETH-FLAN Ethernet Module

The ETH-FLAN provides conversion of Fiber Optic (FO) to copper Ethernet, which allows high speed data transmission.
An integrated 10/100BaseT Ethernet switch enables the use of your distributed networked devices over a FO cable.
ETH-FLAN design is based on high grade industrial components, and it is manufactured according to highest quality standards.
ETH-FLAN is an efficient long distance cable link solution between any GeoSIG instrument or computer.

Standards:
IEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X) and
100BaseFX
FO connector(s):
1 x Multimode SC (ETH-FLAN-1)
2 x Multimode SC (ETH-FLAN-2)
FO cable:
OM1
Ethernet connector(s):
4 x RJ45 (ETH-FLAN-1)
6 x RJ45 (ETH-FLAN-2)
Ethernet cable:
CAT5E or CAT6
Power
Voltage
12 to 48 VDC
Consumption
Typically less than 5 W
Environment/Housing
Size
300 x 200 x 120 mm,
optional DIN rail mountable 135 x 105 x 54 mm
optional external housing dimensions defined per project
Weight:
< 800 g
Operating Temperature
-40°C to +75°C
Storage Temperature
-40°C to +85°C
Index of Protection
IP30
optional IP65 external housing
**Specifications subject to change without notice

100BaseFX and 10/100BaseT(X) ports
Converts copper Ethernet to FO
Up to 4 km or more in multimode operation
Point-to-Point, and Ring applications
Robust metal housing

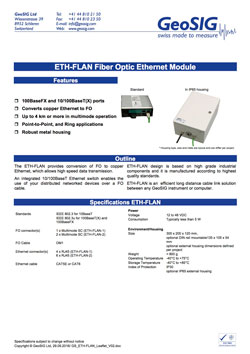

Download: Data sheet
