GeoSIG BAT-Exxx Power Module
Key Features
- Power supply and charger
- External batteries
- Field friendly terminal connectors
- Reliable power autonomy
- Robust metal and marine housing
BAT-Exxx power module consists of GeoSIG Power Pack as well as an external battery inside a marine housing. The module is supplied with necessary cables for inter-connection and to connect to relevant equipment.
The Power Pack contains a power supply and a charger specially designed to provide constant power to the GeoSIG instruments and charge an external lead battery.
The Power Pack contains a power supply and a charger specially designed to provide constant power to the GeoSIG instruments and charge an external lead battery.
- AC-Input Voltage:
- 90-264 VAC
47 – 63 Hz
Universal Input - DC-Output
- 15V / 2.4A
- Charge Voltage
- 14.7V ± 0.2
- Float Voltage
- 13.8V ± 0.3
- Charging Current
- 4 A
- Recommended battery capacity*
- 15 – 100 Ah
- Dimensions H×W×D
- 300x200x120 mm
-

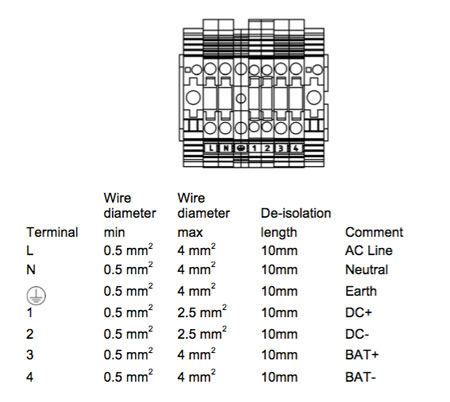

Terminal Designation
-
.jpg)
*Rec. value may vary – contact battery manuf. for details**Specifications subject to change without notice
